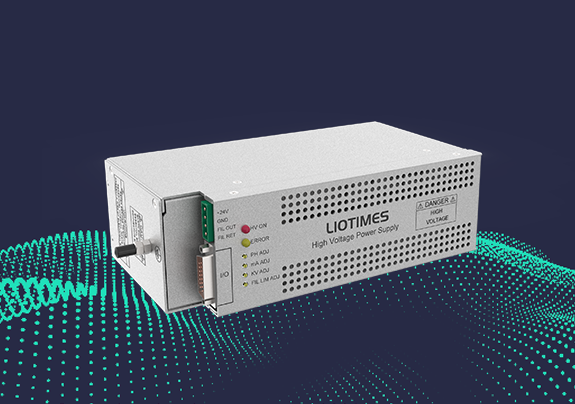

The LPS-65P65B3 is engineered for precision high-voltage applications, delivering adjustable output (0-65kV/1mA) with exceptional stability (ripple ≤0.1%). Featuring dual analog/digital control with local potentiometer adjustment and remote 0-10Vdc signal input, it supports RS-232/RS-485 communication for seamless integration. The unit boasts ≤25ppm/°C temperature coefficient and comprehensive protections including interlock and overload safeguards.
Ideal for X-ray systems, industrial testing, and scientific research, the LPS-65P65B3 combines a compact design (127×73×269mm) with customizable options. Its integrated filament power supply (0-5.5V/0.3-3.5A) with preheating function ensures reliable performance in medical imaging and material analysis applications.
Complete product specifications are finalized and coming soon. Reach out to our salesengineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 8.0A |
|
Output Voltage Range |
0~65kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 65W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr,less than 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

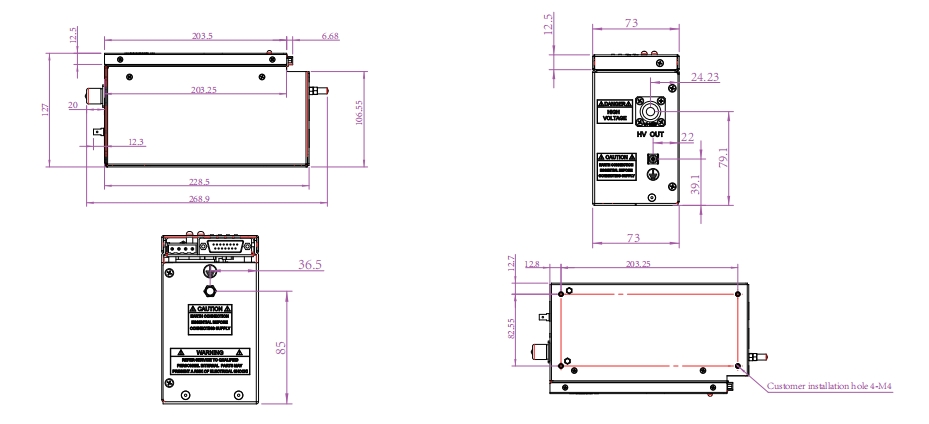

Dimensions |
73*127*269mm |
|
Weight |
3.5kg |
