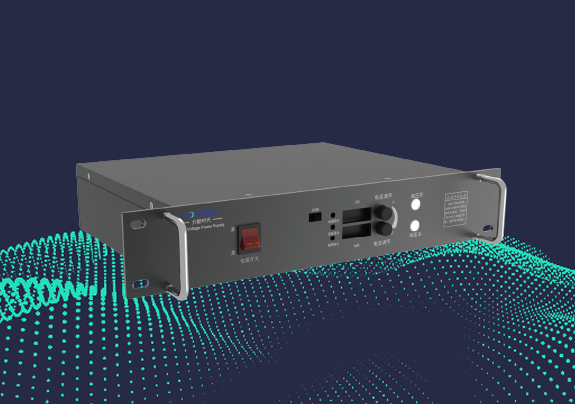

The LPC-30P30B1 is made to work with high-voltage experiments, electron optical systems, and X-ray equipment. The HV power supply provides high stability (ripple ≤0.1%), remote control capabilities (RS-232/RS-485/USB interfaces), and an adjustable output voltage (0~30kV) with a maximum current of 1mA.
This power supply is perfect for laboratory material analysis, NDT inspection, IC inspection, and scientific research. Safe and dependable operation is ensured by integrated protection mechanisms and status indicators. Because it can be customized, it's the ideal choice for applications requiring precise high-voltage power.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
220Vdc± 10% |
|
Input Current |
Max 30A |
|
Output Voltage Range |
0~30kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 30W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr,lessthan 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

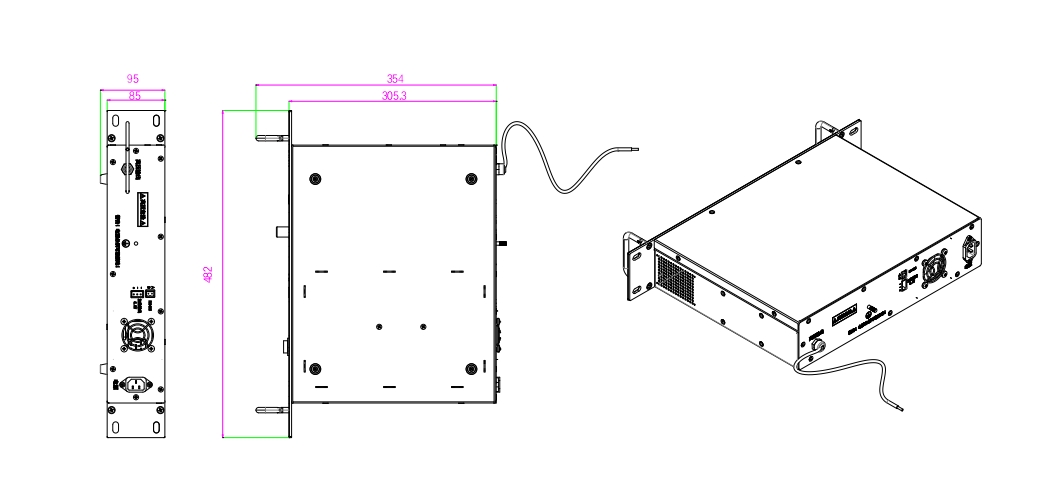

Dimensions |
95*354*482mm |
|
Weight |
4kg |
