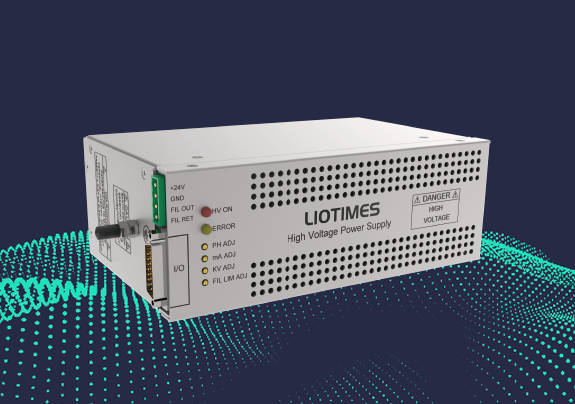

The LPS-50P50B3 is made for high-voltage uses, such as scientific research, medical devices, and industrial testing. With an adjustable output (0-50kV/1mA), high stability (ripple ≤0.1%), and a variety of control options, such as remote 0-10Vdc signal control and local potentiometer adjustment, this power supply boasts outstanding performance.
With integrated interlock protection and overload safeguards, the LPS-50P50B3 is perfect for laboratory equipment, electrostatic applications, and X-ray systems. It is a dependable option for applications needing precise high-voltage power because of its small size and adaptable features.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 8.0A |
|
Output Voltage Range |
0~50kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 50W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr,lessthan 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

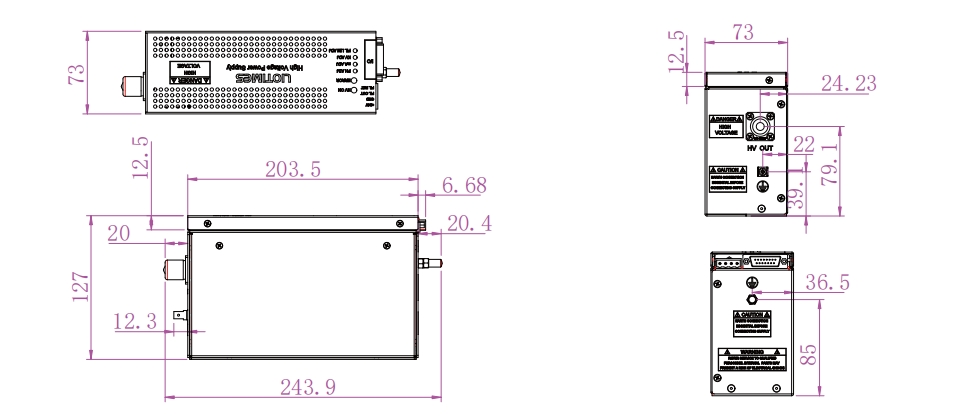

Dimensions |
73*127*203mm |
|
Weight |
3kg |
