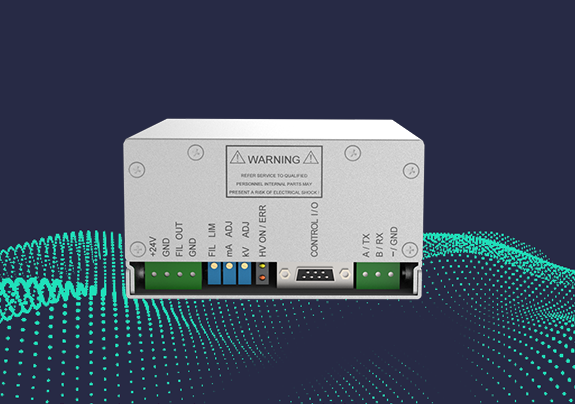

The LPX-25P25B3 delivers precision high-voltage performance with adjustable output up to 25kV/1mA and exceptional stability (≤0.1% ripple). Featuring dual analog/digital control with local potentiometer adjustment and remote 0-10Vdc signal input, it supports multiple communication protocols including CAN, RS-232, and RS-485. The compact unit (1.6kg) incorporates comprehensive safety features, including interlock protection and natural cooling capability.
This versatile power supply is ideal for laboratory instruments, portable testing equipment, and small-scale industrial applications. Its reliable performance makes it particularly suitable for analytical instrumentation, electron beam systems, and low-power X-ray devices where compact size and stable high-voltage output are essential requirements.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 3.0A |
|
Output Voltage Range |
0~25kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 25W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr,less than 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

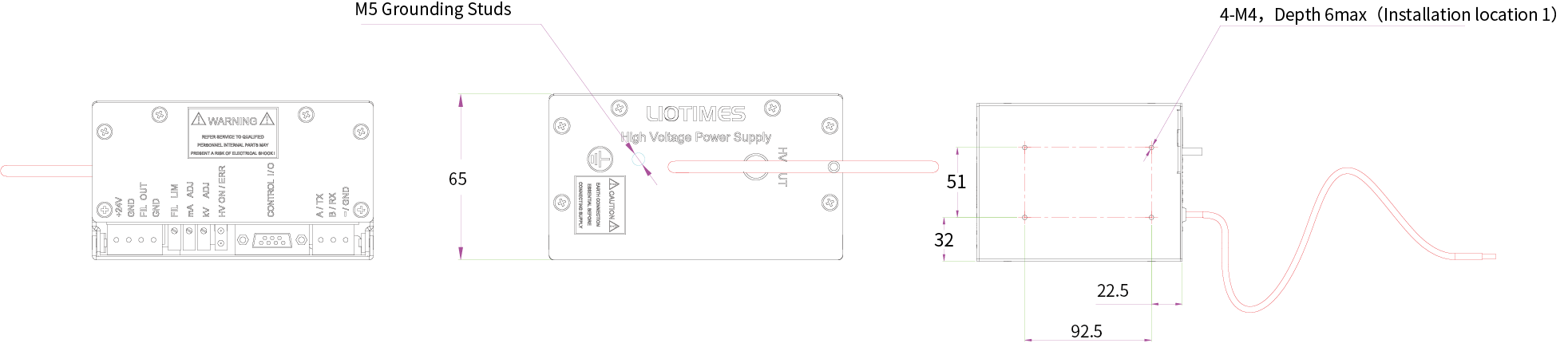

Dimensions |
65*115*165mm |
|
Weight |
1.6kg |
