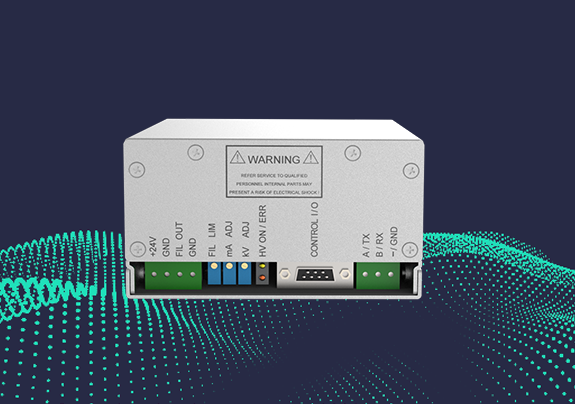

The LPX-30P30B3 is a compact high-voltage power supply delivering adjustable output up to 30kV/1mA with exceptional stability (≤0.1% ripple). Featuring dual analog/digital control with local potentiometer adjustment and remote 0-10Vdc signal input, the high-voltage power supply supports multiple communication protocols including CAN, RS-232, and RS-485. The unit incorporates comprehensive safety features, including interlock protection and overload safeguards.
Ideal for laboratory instruments and industrial systems, the high-voltage power supply is particularly suitable for electron beam applications, analytical instrumentation, and small-scale X-ray systems. Its lightweight design (1.6kg) and natural cooling capability make it perfect for benchtop installations and portable equipment where space efficiency and reliable performance are critical.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 3.0A |
|
Output Voltage Range |
0~30kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 30W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr, less than 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

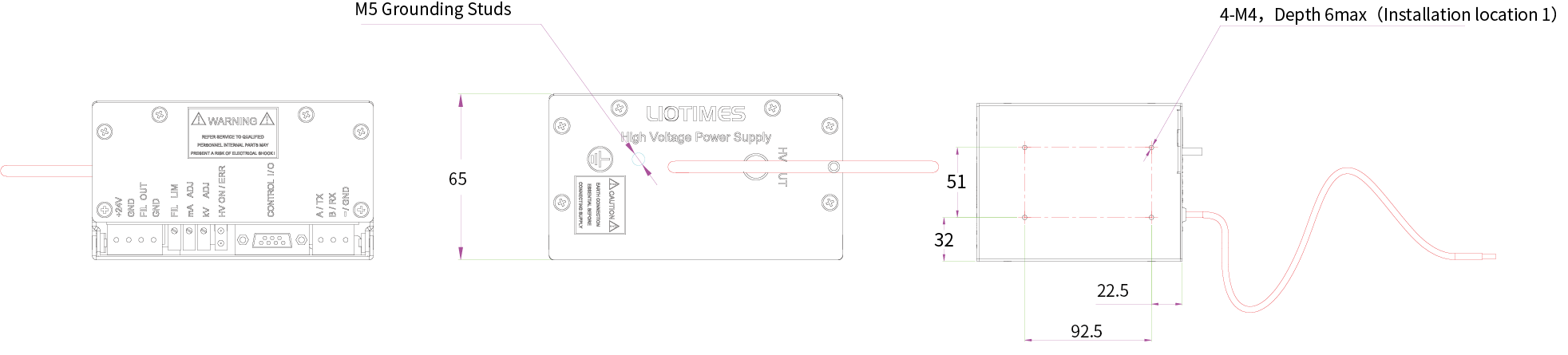

Dimensions |
65*115*165mm |
|
Weight |
1.6kg |
