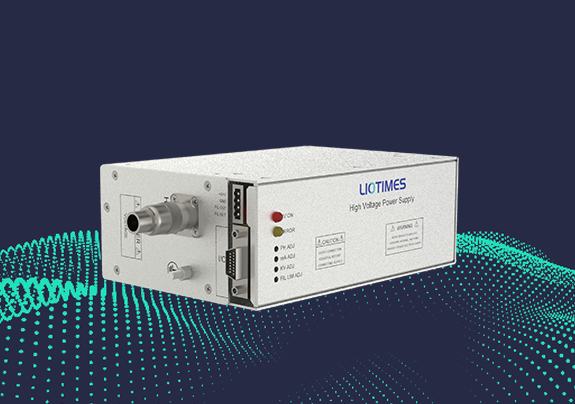

The LPX-50P50B3 is a precision high-voltage power supply offering adjustable output up to 50kV/1mA with exceptional stability (≤0.1% ripple). It features dual analog/digital control options, supporting both local potentiometer adjustment and remote 0-10Vdc signal control, along with RS-232/RS-485 communication interfaces for system integration. The unit incorporates comprehensive safety protections including interlock functionality and overload safeguards.
Designed for critical applications, this power supply excels in medical X-ray systems, industrial non-destructive testing equipment, and advanced scientific research instruments. Its compact form factor and reliable performance make it particularly suitable for electron microscopy, materials analysis, and semiconductor characterization systems where stable high-voltage power is essential.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 8.0A |
|
Output Voltage Range |
0~50kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 50W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr, less than 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Dimensions |
75*139*218mm |
|
Weight |
3.5kg |
