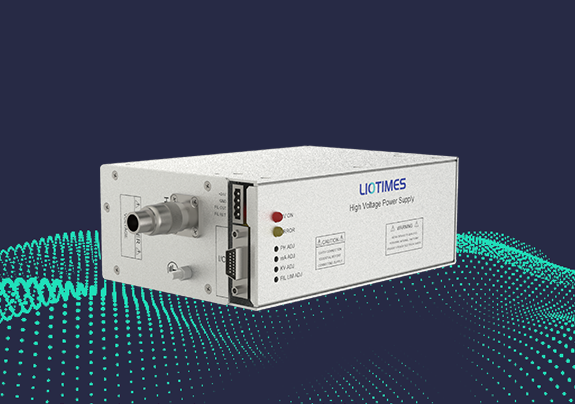

The LPX-60P60B3 delivers precision high-voltage performance with adjustable output (0-60kV/1mA) and exceptional stability (ripple ≤0.1%). Featuring dual analog/digital control with local potentiometer adjustment and remote 0-10Vdc signal input, it supports RS-232/RS-485 communication for seamless system integration. The unit offers ≤25ppm/°C temperature coefficient and comprehensive protection including interlock and overload safeguards.
This high-voltage power supply finds ideal applications in medical imaging systems, industrial inspection equipment, and scientific research instrumentation. Its reliable performance makes it particularly suitable for X-ray generators, electron beam equipment, and materials analysis systems where stable high-voltage power is essential. The compact design and customizable features ensure easy integration into various laboratory and industrial environments, meeting diverse application requirements.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 8.0A |
|
Output Voltage Range |
0~60kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 60W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr,less than 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

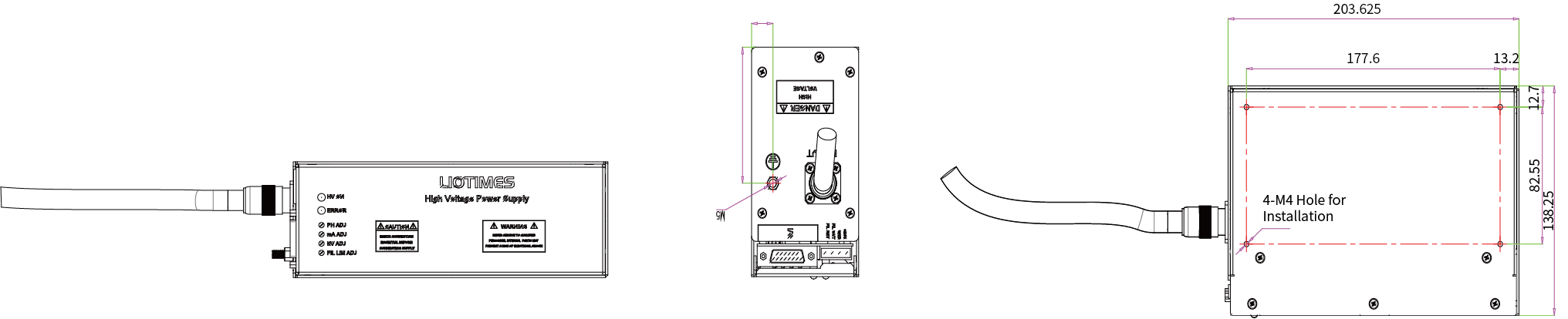

Dimensions |
75*139*218mm |
|
Weight |
3.5kg |
