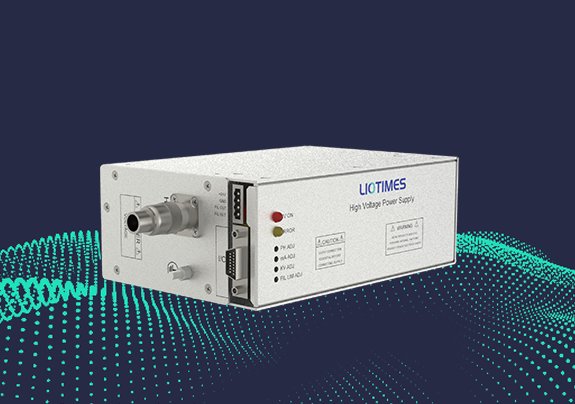

The LPX-70P70B3 is engineered for precision high-voltage applications, delivering adjustable output (0-70kV/1mA) with exceptional stability (ripple ≤0.1%). Featuring dual analog/digital control with local potentiometer adjustment and remote 0-10Vdc signal input, it supports RS-232/RS-485 communication for seamless system integration. The unit boasts a temperature coefficient of ≤25ppm/°C and comprehensive protection, including interlock and overload safeguards.
Ideal for medical imaging systems, industrial inspection equipment, and advanced scientific research, the LPX-70P70B3 excels in applications requiring stable high-voltage power. Its compact design and customizable features make it particularly suitable for X-ray generators, electron beam instruments, and laboratory analysis systems where precision and reliability are critical. The integrated filament power supply with preheating function further enhances its performance in specialized applications.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 8.0A |
|
Output Voltage Range |
0~70kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 70W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr,less than 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

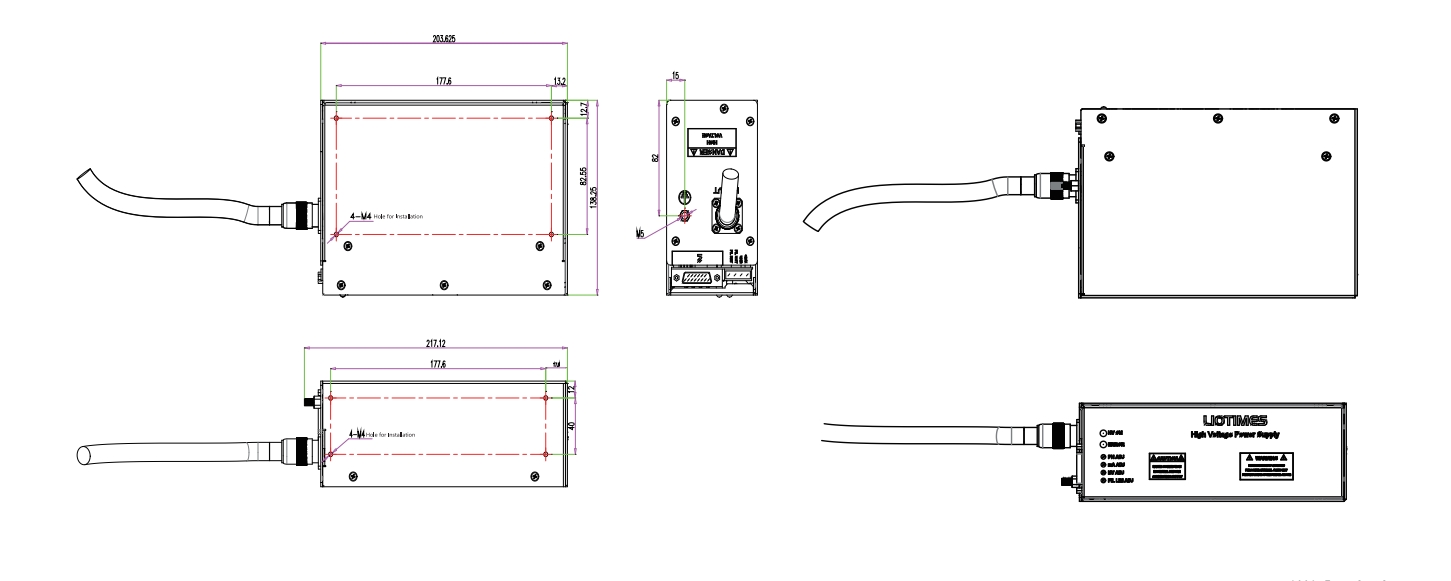

Dimensions |
75*139*218mm |
|
Weight |
3.5kg |
