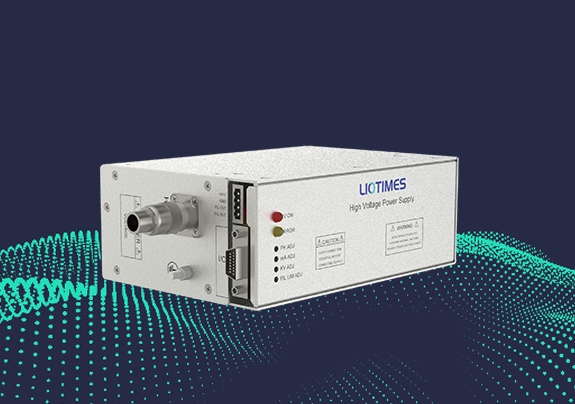

The LPM-70P70B3 is a high-performance power module delivering adjustable output up to 70kV/1mA with exceptional stability (≤0.1% ripple). Featuring dual analog/digital control with local potentiometer adjustment and remote 0-10Vdc signal input, it supports RS-232/RS-485 communication for system integration. The compact module (3.5kg) incorporates comprehensive protection, including interlock functionality and forced-air cooling for reliable operation.
This power module is specifically designed for industrial X-ray inspection systems, medical imaging equipment, and high-voltage testing applications where stable, high-power output is critical. Its robust construction and flexible control options make it particularly suitable for integration into automated production lines and large-scale testing facilities requiring precise high-voltage regulation.
Complete product specifications are finalized and coming soon. Reach out to our sales engineers for technical data.
|
Input Voltage |
24Vdc ± 10% |
|
Input Current |
Max 8.0A |
|
Output Voltage Range |
0~70kV |
|
Output Current |
Max 1.0mA |
|
Output Power |
Max 70W |
|
Stability |
0.5hr after starting up, less than 0.01%/hr,less than 0.02%/8hrs |
|
Temperature Coefficient |
≤25ppm/℃ |
|
Ripple Voltage |
0.1% of maximum output voltage (P-P) |
|
Voltage Relative to Load Regulation |
0.01% (no load to rated load) |
|
Voltage Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|
Current Relative Load Regulation |
0.01% (no load to rated load) |
|
Current Relative Input Regulation |
±0.01% (input voltage variation±10%) |
|

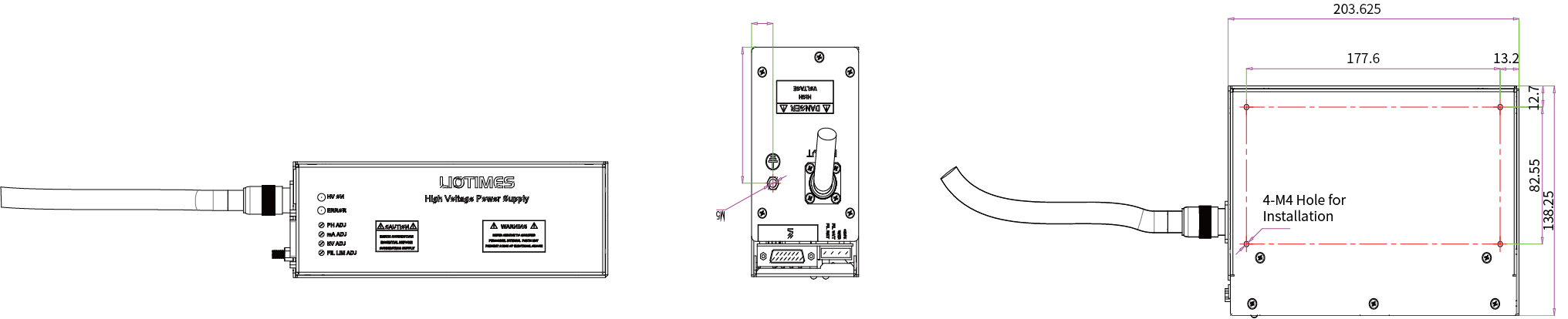

Dimensions |
75*139*218mm |
|
Weight |
3.5kg |
